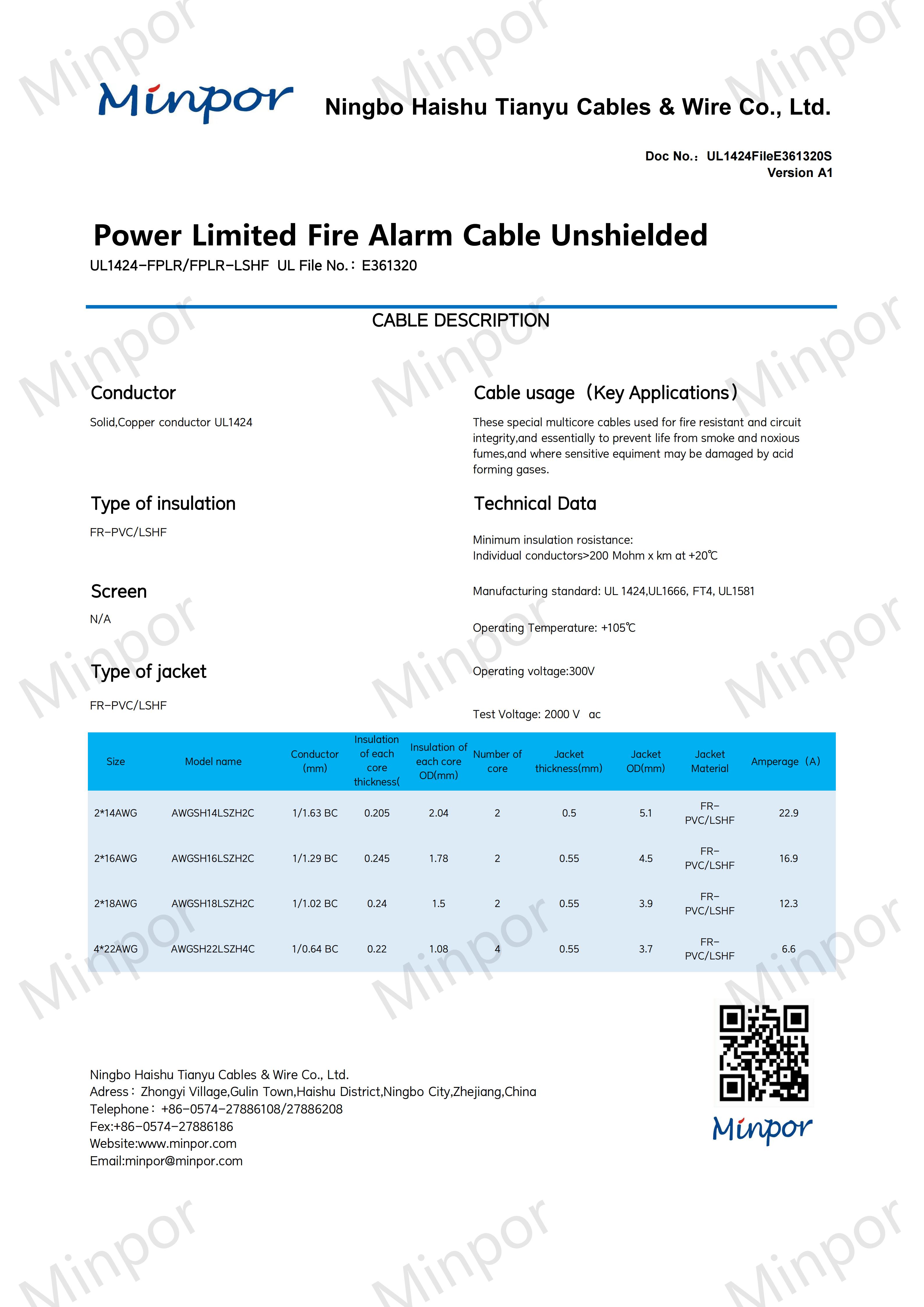

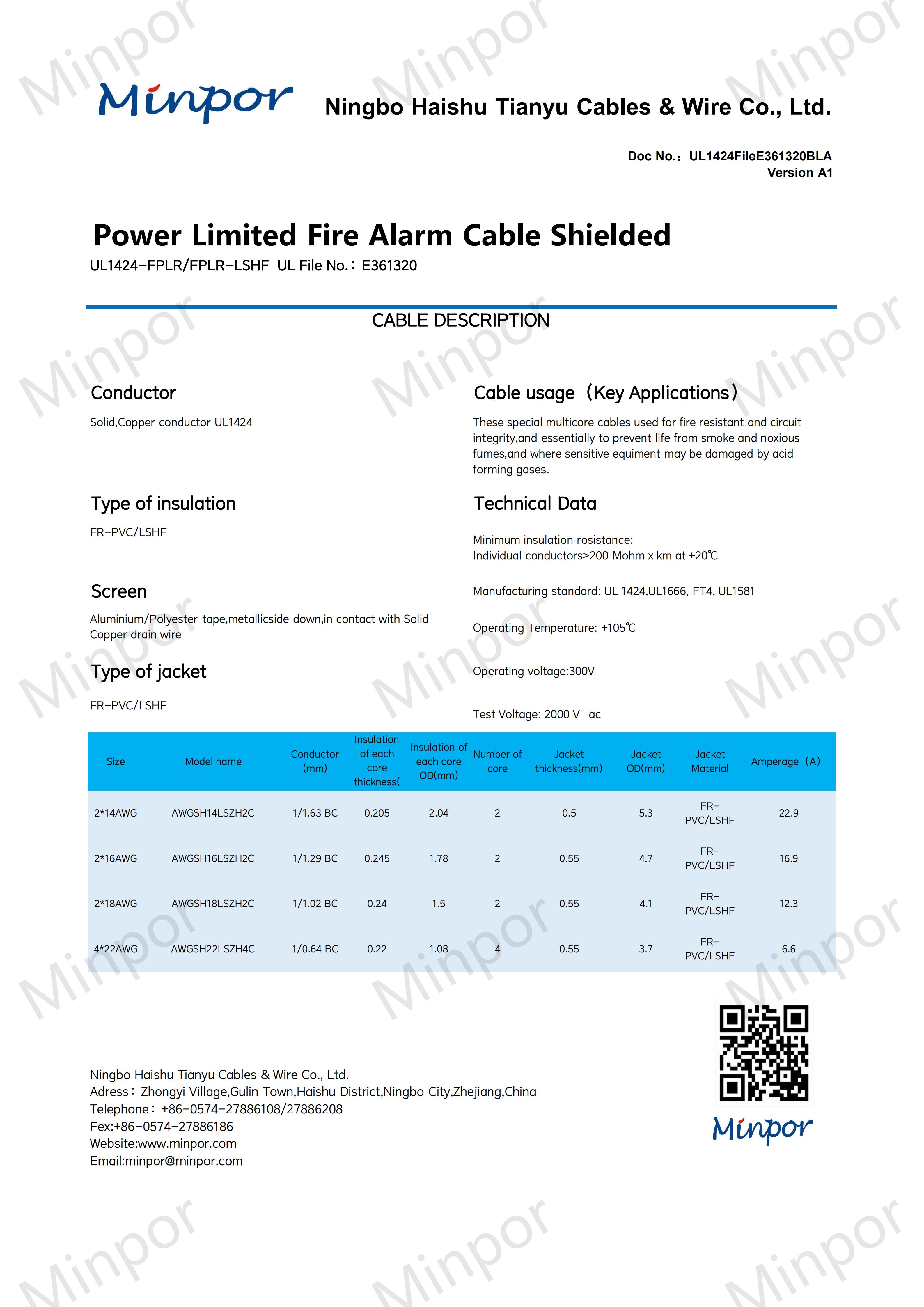

-Conductors: Stranded Solid,Copper conductor UL1424,UL1581
-Insulation: Fire Resistance PVC
-Binder Tape: Polyster tape 50% overlap
·Collective Screen Polyster tape 50% overlap Aluminium/Polyester tape,metallic side down,in contact with Solid Copper drain wire
·Outer Sheath: Fire Resistance PVC
-Color Red,White,Orange
Conductor:Size Scope AWG26-AWG10
Minimum insulation resistance:Individual conductors
>200Mohmxkm at+20℃
Minimum bending radius:8xOveralldiameter Fire Rating:UL1666,FT4,UL1581
Operating Temperature:+105℃
Installation Temperature:-5℃ to+50℃
Voltage Rating:300/500V Test Voltage:2000Vac
